Masterpiece® Gas Cooktop 30'' Stainless SteelSGSX305TS
SGSX305TS
1 / 0
Masterpiece® Gas Cooktop 30'' Stainless SteelSGSX305TS
SGSX305TS
$4,549.00
MSRP (CAD $), dealer may sell for less
Find a local Dealer
Find a local dealer in your vicinity
Masterpiece® Gas Cooktop 30'' Stainless SteelSGSX305TS
SGSX305TS
$4,549.00
MSRP (CAD $), dealer may sell for less
Find a local Dealer
Find a local dealer in your vicinity
Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
3 13/16 x 31 x 21 1/4
Dimensions
96.8x787x546 mm
Color
Stainless Steel
Specifications
Total BTU load
52000 Btu
Total connected gas load
15240 W
LP Gas Connection Rating
45200 Btu
ExtraLow® Burners
Yes
Overall Appliance Dimensions (HxWxD) (in)
3 13/16 x 31 x 21 1/4
Dimensions
96.8x787x546 mm

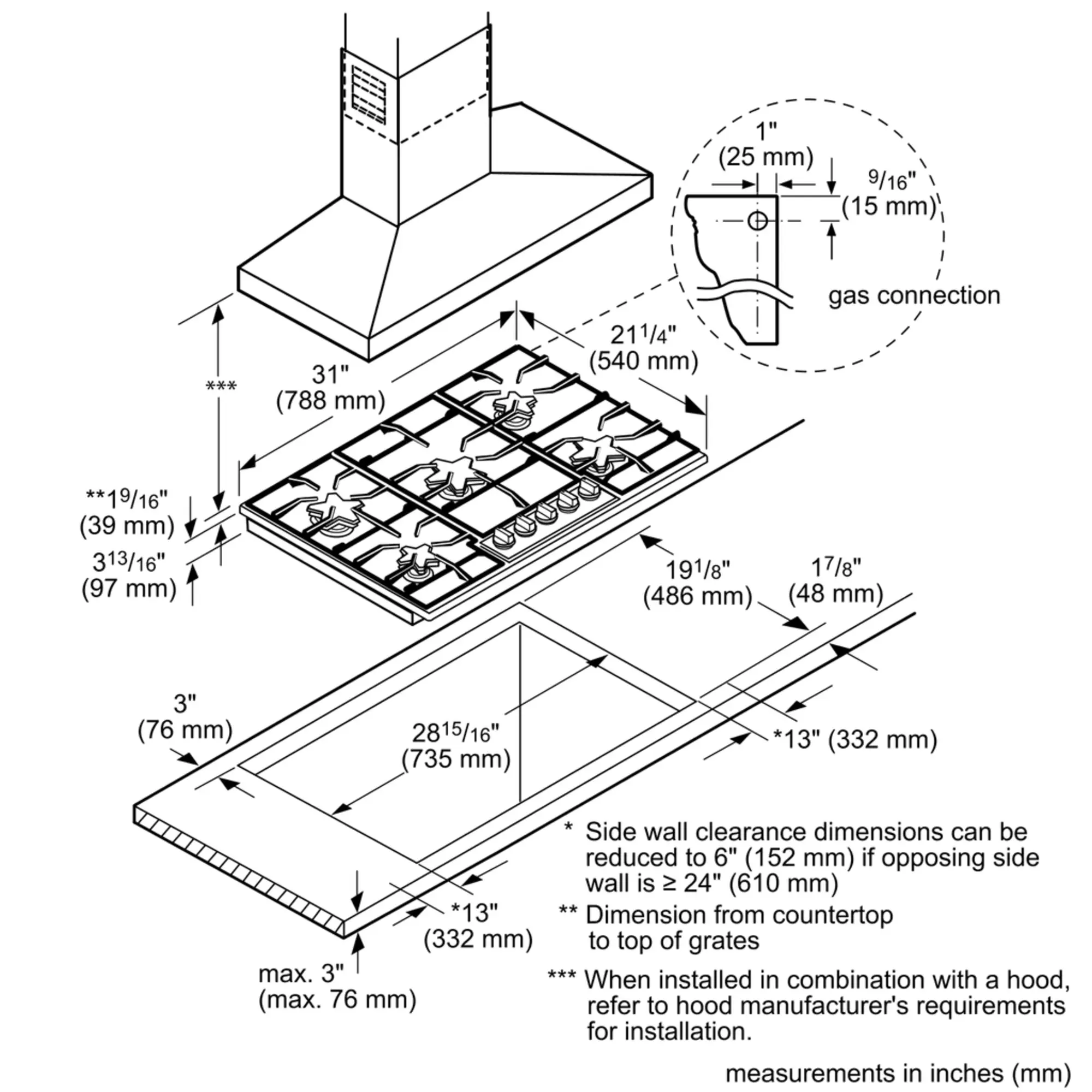

Required Cutout Size (HxWxD) (in)
3 13/16'' x 28 15/16'' x 19 1/8''
Required cutout size (HxWxD)
96.8 x 735-735 x 486-486 mm
Gas type preset
Natural gas 15 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
Liquid gas 27,5 mbar (USA)
Plug type
120V-3 prong
Power Cord Length
60
Power cord length
152 cm
Amps
15 A
Volts
120 V
Product Packaging Dimensions (HxWxD)
8 3/8'' x 37 1/8'' x 24 3/4''
Product packaging dimensions (HxWxD)
240x945x615 mm
Surface Materials
Stainless Steel
Grate Materials
Cast iron with rubber feet
Location of Control Panel
Front
Number of gas burners
5
Sealed Burners
Yes
ExtraLow® Burners
Yes
Special Features
Reignition
Griddle
No
ADA Compliant
No
Home Connect® WiFi-enabled
No
Included Accessories
3 x cast iron pan support
