VCIN36JP

Product is no longer available

More information and services related to this product

1 / 0

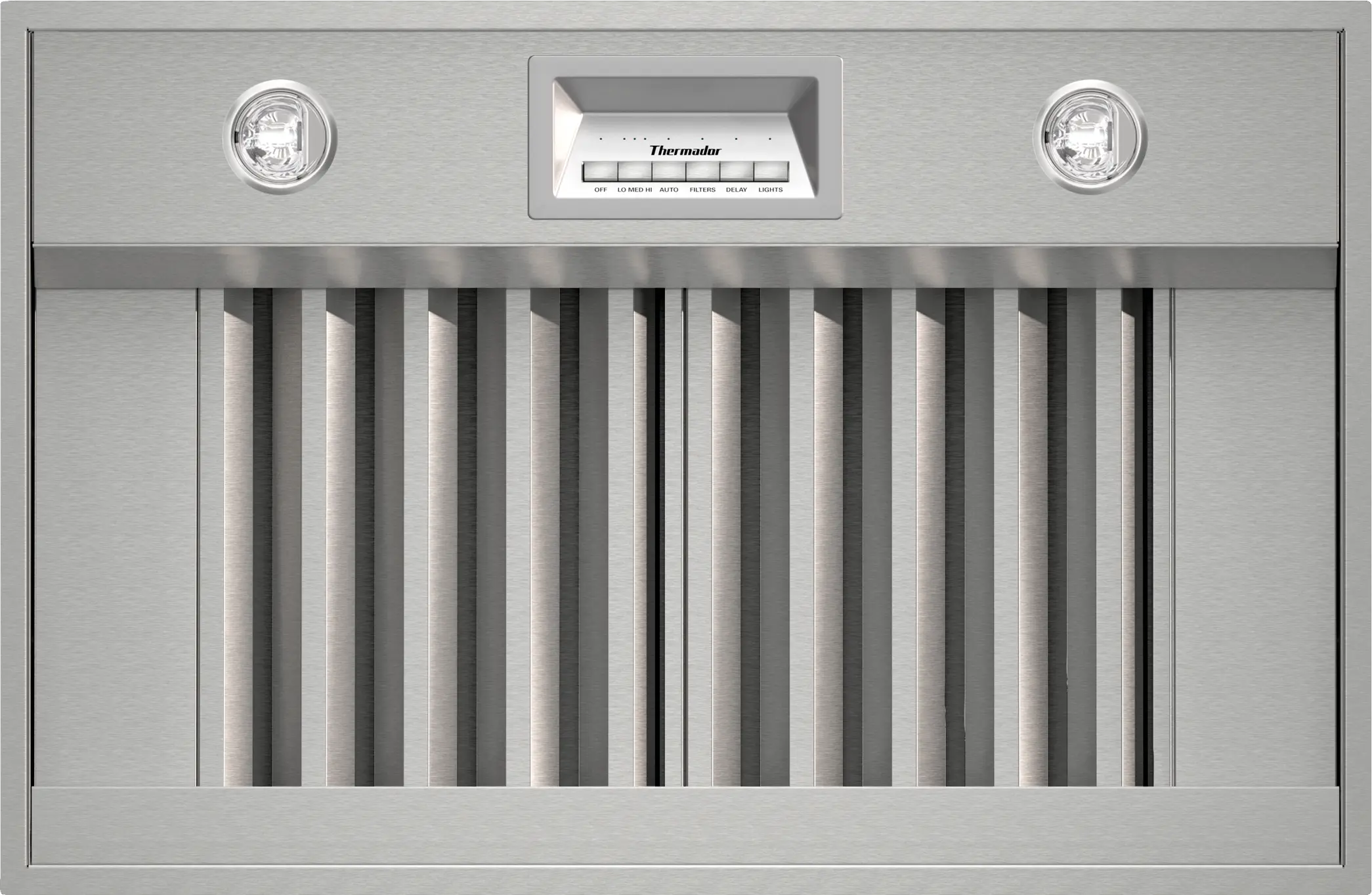

Photo Nr. 1 of the product VCIN36JP
Photo Nr. 2 of the product VCIN36JP
VCIN36JP

Product is no longer available

More information and services related to this product

VCIN36JP

Product is no longer available

More information and services related to this product

Technical Overview

Installation Type
Wall-mounted
Venting
Ducted

Highlights

Specifications

Installation Type
Wall-mounted
Size
36 Inch
Type of appliance width
91 cm
Venting
Ducted
Material
Stainless steel
Grease Filter Material
Washable Stainless Steel
Filter Types
Baffle
Heat Lamp
0 W
Type of Control
LED, push-button
Speed Settings
3 Fan Speeds

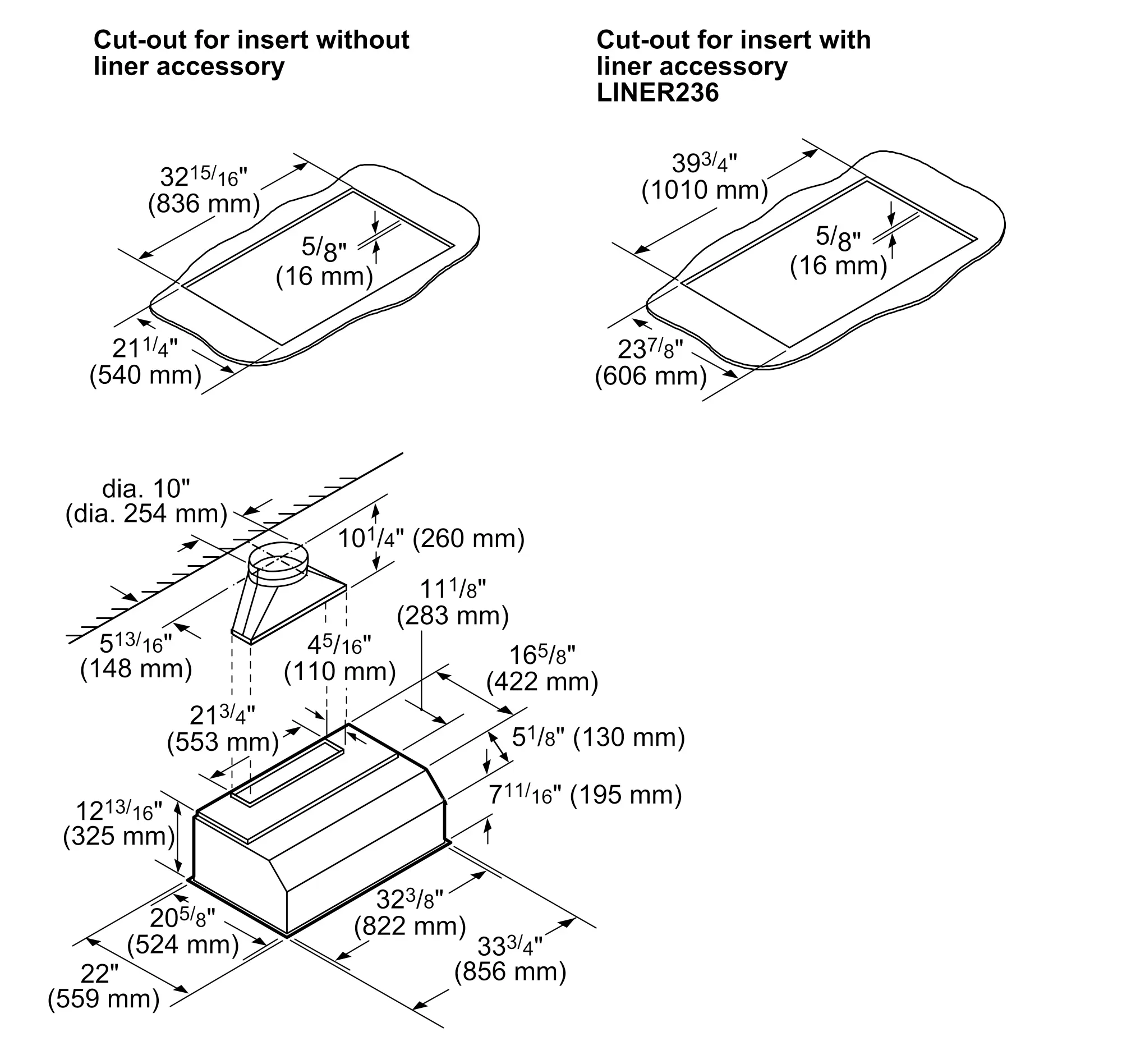

Overall Appliance Dimensions (HxWxD) (in)
12 13/16" x 33 3/4" x 22"
Overall appliance dimensions (HxWxD)
325 x 856.0 x 559.0 mm
Product Packaging Dimensions (HxWxD)
20 1/16" x 24 7/8" x 36 5/8"
Product packaging dimensions (HxWxD)
509 x 631 x 930 mm
Required Distance Above Cooktop/Ranges
30"/30"
Damper
Yes
1 / 0
Photo Nr. 1 of the product
Clean Filter Reminders
No
Delay Shut Off Modes
Yes
Boost Speed
No
Remote Control
No
ADA Compliant
No
Light Type
Halogen
Number of Lights
2
Total Luminance
990 lux
Heat Lamps
No
Home Connect® WiFi-enabled
No
Cooktop Hood Sync
No
