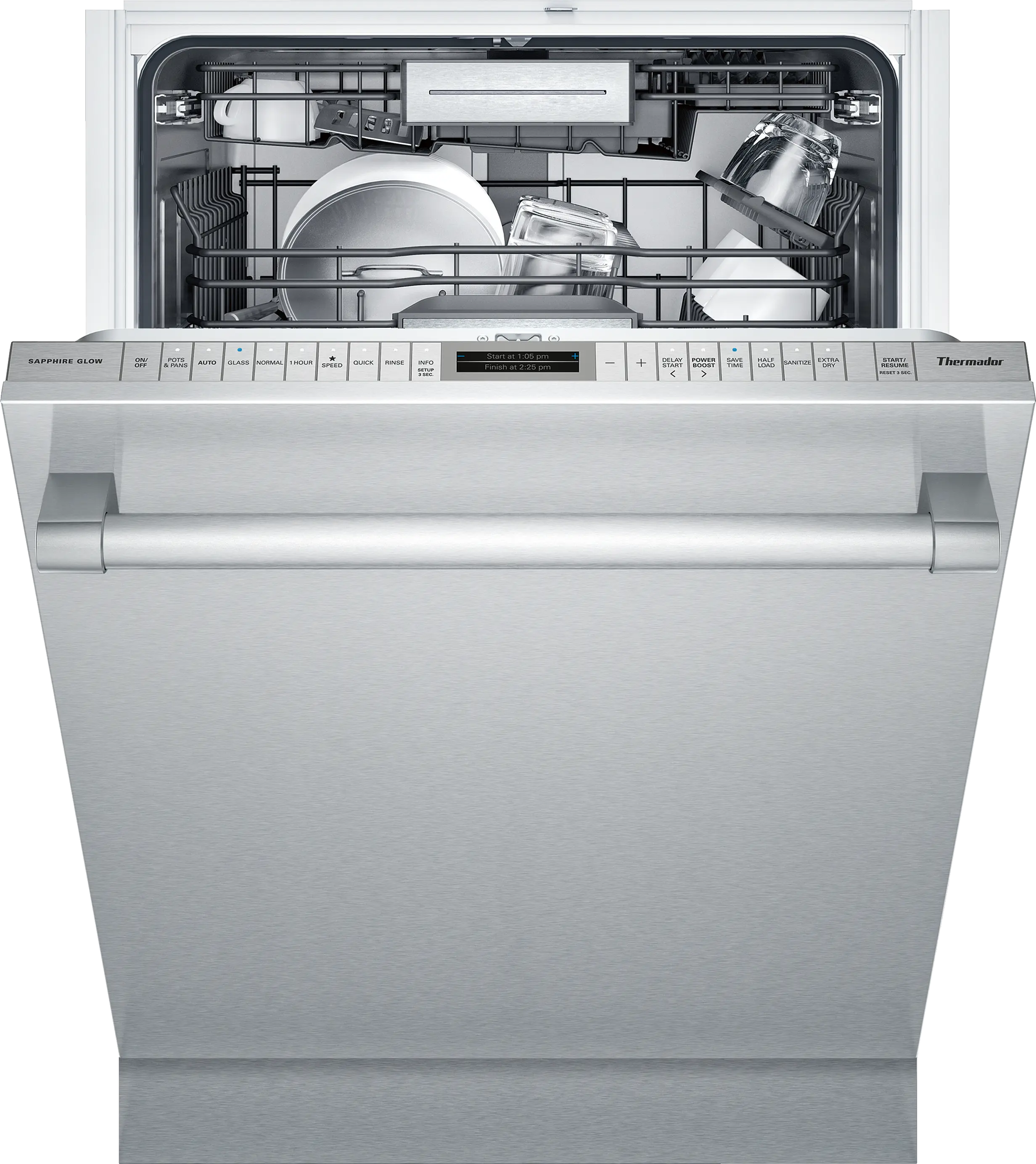

Photo Nr. 1 of the product DWHD860RFP

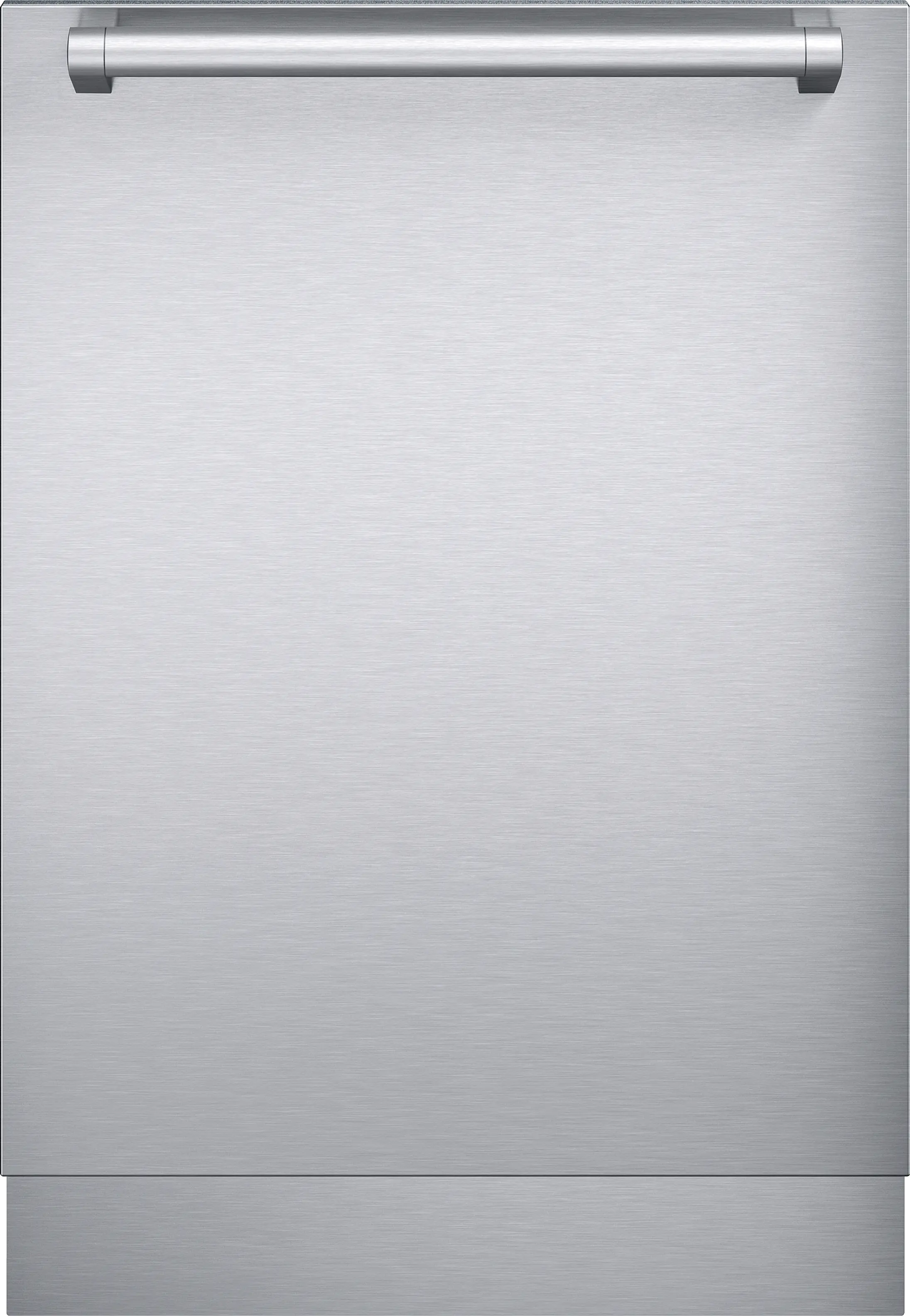

Photo Nr. 2 of the product DWHD860RFP

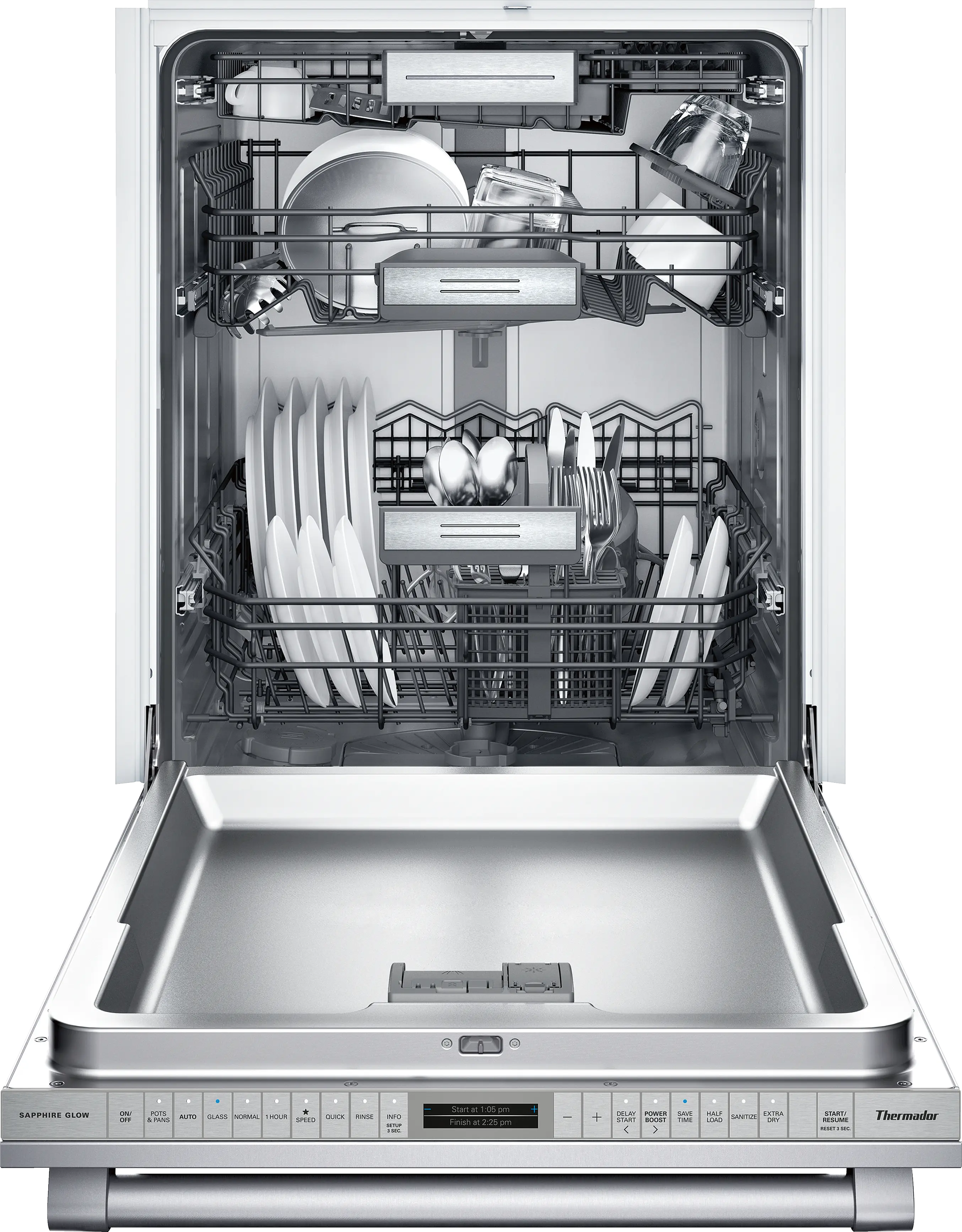

Photo Nr. 3 of the product DWHD860RFP
Photo Nr. 4 of the product DWHD860RFP
Photo Nr. 5 of the product DWHD860RFP
DWHD860RFP

Product is no longer available

More information and services related to this product

DWHD860RFP

Product is no longer available

More information and services related to this product

Technical Overview

Overall Appliance Dimensions (HxWxD) (in)
34 1/16'' x 23 9/16'' x 22 9/16''
Silence Level
44 dB(A) re 1 pW

Highlights

Specifications

Design
Built-in
Installation Type
Built-under
Color
Stainless Steel
Color / Control Panel
Stainless Steel
Removable top
No
Variable hinge
No
Adjustable plinth
No
ENERGY STAR®
Yes
Total Annual Energy Consumption
269 kWh
Total Annual Water Consumption
624 gal
Silence Level
44 dB(A) re 1 pW
Number of Place Settings
14
List of Programs
Pots & Pans, Auto, Hand Wash, Normal, 1 Hour, TurboSpeed 20min, Quick, Rinse
Cycle Options
PowerBoost®, Save Time, Half Load, Sanitation, Extra Dry
aquaStop
Yes
Drying System
Condensation Dry
3rd Rack
Adjustable Entertainer’s Drawer®
Adjustable Upper Rack
Yes
Maximum temperature for water intake
140 °F
Maximum temperature for water intake (°C)
60 °C
Accessories Parts
Large item spray head, Glasstray
Overall Appliance Dimensions (HxWxD) (in)
34 1/16'' x 23 9/16'' x 22 9/16''
Required Cutout Size (HxWxD) (in)
34 1/8'' x 24'' x 24''
Required cutout size (HxWxD)
865-925 x 610 x 610 mm
Net Weight
106.000 lbs
Net Weight
48.2 kg
Adjustable Feet
Yes, All Adjustable from Front
Length Outlet Hose (in)
55 1/8''
Length outlet hose
190 cm
Power Cord Length
47 1/4''
Power cord length
175 cm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Status Indicator
End of program audible
Time Remaining PowerBeam®
Yes
Program Status Light
Not applicable
Drying System
Condensation Dry
Washing System
PrecisionWash®
NSF® Certified Sanitize Option
No
SilentPowerDrive
Yes
Aquasensor
Yes
Water management system
Yes
Detergent detection
No
Water Softener
Yes
Home Connect® WiFi-enabled
No
aquaStop
Yes
ChildLock
No
