Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
33 7/8'' x 23 9/16'' x 23 3/4"
Silence Level
42 dB(A) re 1 pW
Specifications
Design
Built-in
Installation Type
Built-under
Color
Stainless Steel
Color / Control Panel
Stainless Steel
Removable top
No
Variable hinge
No
Adjustable plinth
No
ENERGY STAR®
No
Total Annual Energy Consumption
269 kWh
Total Annual Water Consumption
624 gal
Silence Level
42 dB(A) re 1 pW
Number of Place Settings
16
List of Programs
Pots & Pans, Auto, Eco, Glass, 1 Hour, Quick, Rinse
Cycle Options
Remote Start, PowerBoost®, Save Time, Half Load, Sanitize, StarDry™
aquaStop
No
Drying System
StarDry™ with Zeolite, Condensation Dry

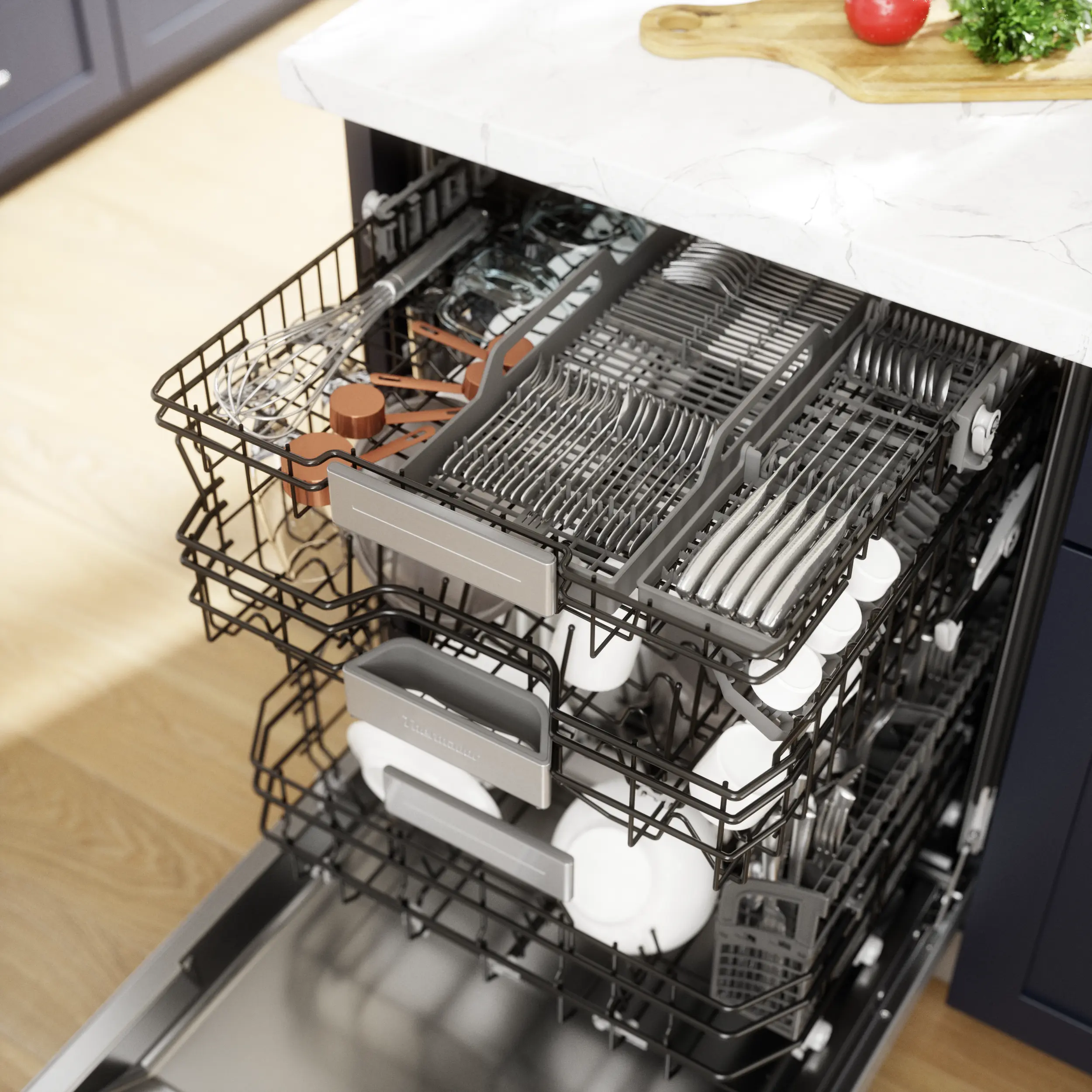

3rd Rack
Adjustable Entertainer’s Drawer®
Adjustable Upper Rack
Yes
Maximum temperature for water intake
140 °F
Maximum temperature for water intake (°C)
60 °C
Accessories Parts
Large item spray head
Overall Appliance Dimensions (HxWxD) (in)
33 7/8'' x 23 9/16'' x 23 3/4"
Required Cutout Size (HxWxD) (in)
33 7/8'' x 24'' x 24''
Required cutout size (HxWxD)
860-890 x 610 x 610 mm
Net Weight
100.000 lbs
Net Weight
45.3 kg
Adjustable Feet
Yes, All Adjustable from Front
Length Outlet Hose (in)
90 1/2''
Length outlet hose
230 cm
Power Cord Length
67''
Power cord length
170 cm
1 / 0
Status Indicator
End of program audible
Time Remaining PowerBeam®
Yes
Program Status Light
Not applicable
Drying System
StarDry™ with Zeolite, Condensation Dry
Washing System
PrecisionWash®
NSF® Certified Sanitize Option
Yes
SilentPowerDrive
Yes
Aquasensor
Yes
Water management system
No
Detergent detection
No
Water Softener
Yes
Home Connect® WiFi-enabled
Yes
Home Connect® Features
Remote Monitoring and Control
aquaStop
No
ChildLock
No
